Culverts play a valuable role in our infrastructure.
If your residential or commercial property has a culvert, it’s essential that you keep it in good working condition.
We’re here to help you understand how culverts work, how they can sustain damage, and what you can do to repair and maintain your property’s culverts.
Key Takeaways
- Culverts allow for proper water drainage and protect our infrastructure and the surrounding ecosystems.
- Culverts can become weakened or damaged from corrosion, abrasion, extreme weather, or changes to the surrounding infrastructure.
- There are many ways to repair a culvert, and the project is best handled by professionals.
Culverts 101
What Do Culverts Do?
Culverts are heavy-duty pipes used in water management and drainage systems.
They help to maintain the natural flow of water where streams and rivers intersect roadways, driveways, and other infrastructure.
Culverts can also be bridge-like structures that support pedestrian or vehicle traffic while allowing water to flow underneath.
Culverts serve several essential purposes, including:
- Prevent water-logging and flooding
- Protect the structural integrity of roads, driveways, railways, and buildings
- Prevent erosion and washouts
- Improve road safety by reducing water pooling on roads
- Protect ecosystems and promote biodiversity
Types of Culverts
Culverts vary in size, shape, and function. Here are three of the most common types of culverts:

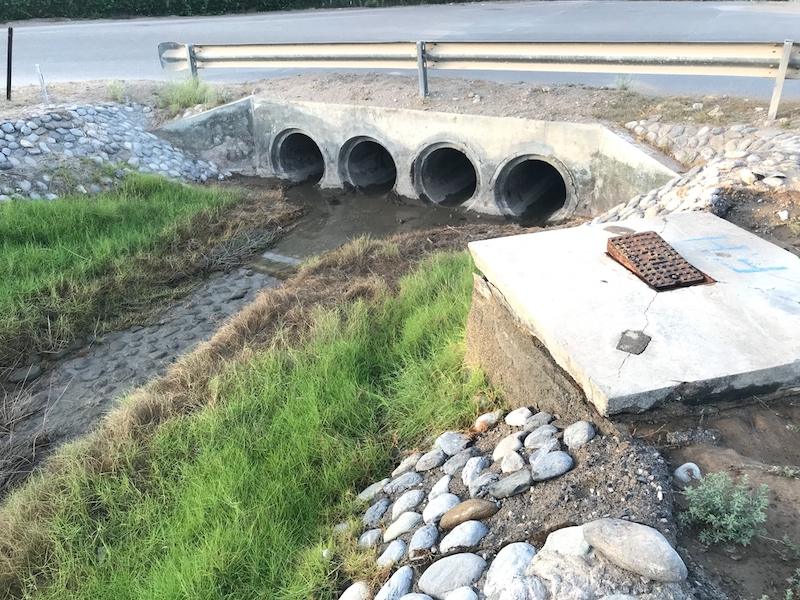

- Pipe culverts: The most common type of culvert, these are usually cylindrical and made from concrete, plastic, or steel. Pipe culverts are best for small or mid-sized projects and smaller drainage systems.
- Box culverts: These culverts are rectangular or square in shape, which gives them a large weight-bearing capacity. Box culverts are popular for larger projects and are often seen in bridges and underpasses.
- Arch culverts: These culverts arch above and around the water source and can be made of metal, concrete, or stone. They are typically quick to install, and the installation process doesn’t disrupt the flow of water.
Common Materials
Culverts can be made from a variety of materials. The best material for a culvert depends on its size, shape, capacity, and function.
Common materials used to construct culverts include:
- Structural steel plate (SPP): This material is made from galvanized steel plates bolted together, making it highly durable and customizable. It’s often used for load-bearing culverts or culverts that need to withstand high water pressure.
- Corrugated steel pipe (CSP): This materials is made from a single sheet of galvanized steel. It’s strong and flexible, so it’s ideal for areas that experience frequent ground movement.
- Concrete: Often used for box culverts, concrete is a strong and durable material that can withstand heavy loads. It also has a low environmental impact.
- Plastic: Plastic can be used for non-weight bearing culverts and is a popular option for residential projects. It’s cost-effective and easy to transport and install, but it can’t withstand heavy traffic or water flow.
Common Problems and Damage to Culverts
Like any component of our infrastructure, culverts are vulnerable to damage and wear.
Common problems that can lead to culvert failure include:
1. Design or Construction Issues
If a culvert is incorrectly designed or installed, it may not be able to withstand the weight it’s bearing or manage the volume of water flowing through it.
A culvert can also become overloaded if the water runoff increases, which may happen if there’s increased development or a change in land use in the area. New development such as road expansions can increase the weight on the culvert, too, leading to damage or collapse.
2. Lack of Maintenance
Culverts can become clogged with sediment, vegetation, or other debris.
Clogs and blockages lead to less capacity for water flow, which increases the risk of culvert failure.
Neglecting the land around the culvert can also cause erosion and washouts, eventually leading to the collapse of the culvert.
Regular inspections and maintenance will help to prevent these issues.
3. Weather Events
Hurricanes, floods, and other extreme weather events put stress on culverts.
Culverts can fail if they can’t withstand such a significant flow of water.
The debris carried by floodwater can also become caught in culverts, causing blockages.
4. Natural Wear Over Time
All culverts are vulnerable to natural wear and tear.
Metal culverts can react with the water and soil, which results in corrosion and decreased strength.
Soil and sand in the water can cause abrasion in the bottom portion of the culvert, too.
Culvert Repair Options
Regular maintenance and repairs are vital for residential, commercial, and municipal culverts.
If you have a culvert on your property, you should understand when and how to perform repairs.
Why Is It Important to Repair Culverts?
Here are a few key reasons why maintaining and repairing your culvert is important:
- A damaged culvert can lead to flooding, resulting in the need for driveway repair.
- Erosion around the culvert may disrupt the local ecosystem.
- Water ponding around a damaged culvert can become a breeding ground for mosquitoes.
- Regular maintenance extends the lifespan of the culvert.
- Repairing minor damage is more cost-effective than replacing a culvert.
Methods of Culvert Repair
There are many methods of culvert repair.
The correct option for you depends on the type of culvert you have, the extent of the damage, and your budget.
Here are some of the most common and effective repair methods:
- Cured-in-place pipe lining: This method uses a resin-saturated tube to line the culvert. The lining is then exposed to heat or UV light so that it hardens up.
- Slip-lining: This is similar to cured-in-place lining. A new pipe is placed into the existing culvert and is sealed in place with grout.
- Spiral wound lining: This method uses a specialized winding machine that’s placed at the entrance of the culvert. Vinyl lining materials are fed through the machine and placed into the culvert.
- Spray lining: This method involves spraying the culvert with liquid products, such as polyurethane. Spray lining is more cost effective than other methods, but it doesn’t provide as much structural support.
- Shotcreting: This method involves spraying a concrete mixture into the culvert at high velocity. The high force at which it’s applied causes the concrete to compact and harden.
- Paved invert: This is the placement of concrete on the invert, or base, of the culvert. This method is more commonly used for larger culverts with a diameter of 36 inches or more.
When to Repair vs Replace
You can usually repair a culvert if it has minor damage but has maintained its structural integrity. The surrounding soil should also be stable.
A repair project may be adequate if the volume of water flow through the culvert hasn’t changed.
However, if the culvert has significant corrosion or abrasion, it may need to be fully replaced.
You should also replace a culvert if it has collapsed and caused a sinkhole.
Additionally, if the culvert can’t support the water flow at its current size or design, it needs to be replaced.
Culvert Replacement Process
1. Select the Materials
To replace a culvert, you first need to choose the material, size, and shape of the replacement. All materials have their pros and cons, and some are better suited to residential projects than others.
You should also consider whether the volume of water flow has changed since the culvert was originally installed, which may indicate that you need to purchase a larger culvert to replace it.
2. Remove the Old Culvert
You’ll then need to remove the old culvert, and you may need to dig further to accommodate the new culvert.
Depending on the size of the culvert, you may need specialized equipment to dig it out.
You may need to obtain a permit from your city before removing and replacing a culvert, too.

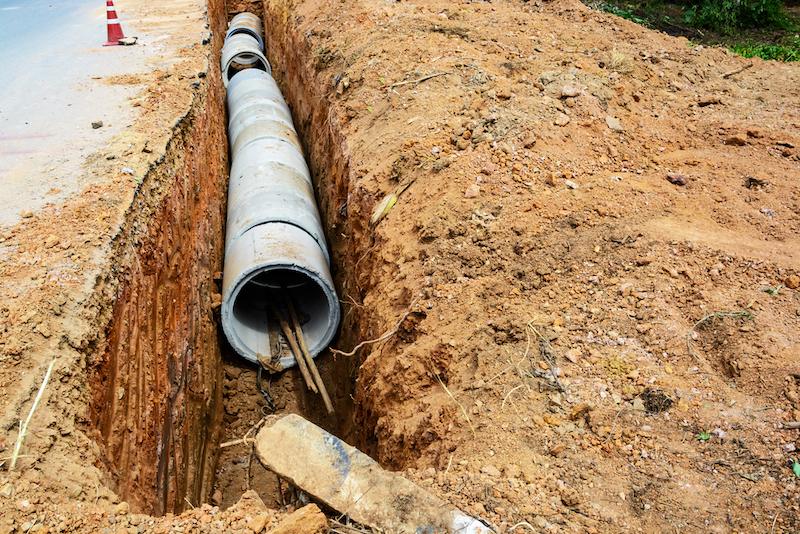

3. Install the New Culvert
Once the old culvert has been removed, the new one can be installed. You’ll also need to restore the soil or gravel around the culvert to reinforce it.
Professional vs DIY Repair
You can maintain your culvert yourself by inspecting it regularly and removing debris or blockages.
Small repairs can sometimes be completed as DIY projects, too.
However, most repairs and replacements should be done by a professional.
There are many considerations to keep in mind when replacing a culvert. Municipal codes and regulations may impact the project, and you need to be mindful of underground utility lines.
Installing a new culvert can ecological damage when done incorrectly, too.
Improper replacement or repair of a culvert can lead to blockages, flooding, corrosion, and damage to the land and ecosystem.
Culvert Repair Experts You Can Trust
If your culvert needs repair or replacement, contact us at Betz Works today. We proudly serve the Santa Cruz, Santa Clara, and Monterey Counties in California.
Reach out to us with any questions or concerns or to request a free quote.
FAQs
Who is responsible for driveway culverts near me?
It’s generally the responsibility of property owners to maintain culverts located on their property.
You can contact your city’s public works department to find out if your city or county has any responsibility to repair, replace, or maintain a culvert on your land.
How do I fix erosion around a culvert?
Planting shrubs or other vegetation around a culvert can support the soil and reduce erosion. Riprap, which is made of loose rocks and stones, can also help to reinforce a culvert.
If you’re concerned that erosion around the culvert will lead to its collapse, you should contact a professional to evaluate and repair the culvert.
What happens when a culvert fails?
When a culvert collapses, it can lead to pooling of water in the driveway, yard, or road.
Culvert failure can also lead to clogged streams and creeks, which affects fish and other wildlife.
